Morgan Low-Noise Wall Mounted Ventilation Fan (8"/10"/12") MVF-WA80/100/120

Product Features

• Motor installed with safety thermal cut-out fuse

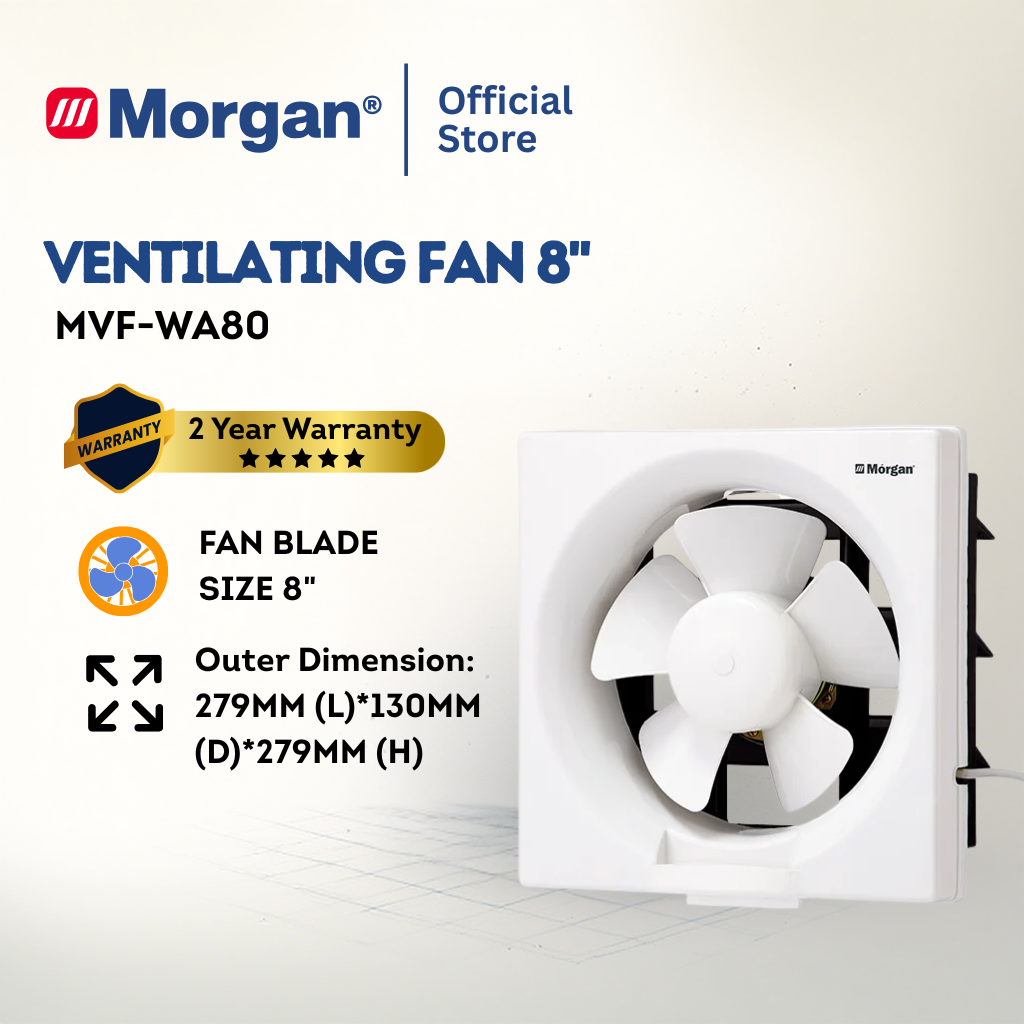

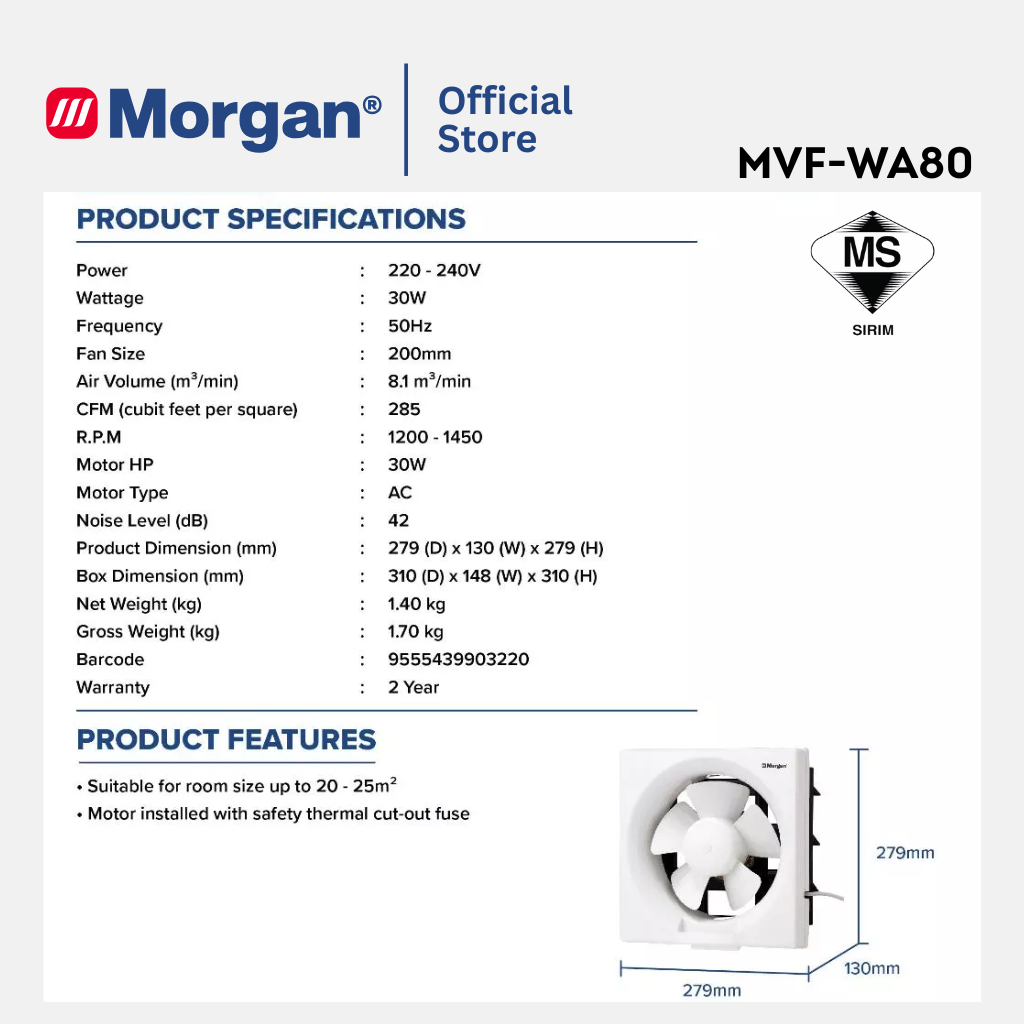

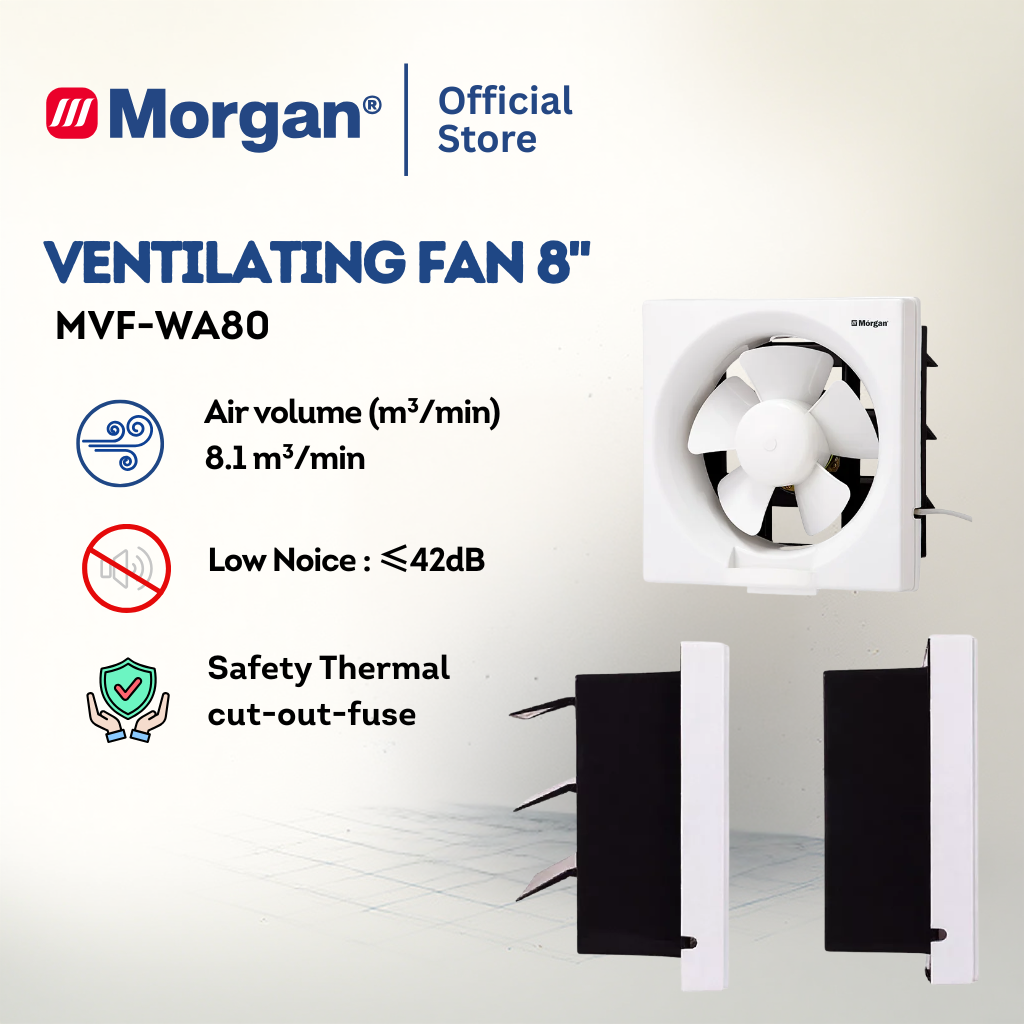

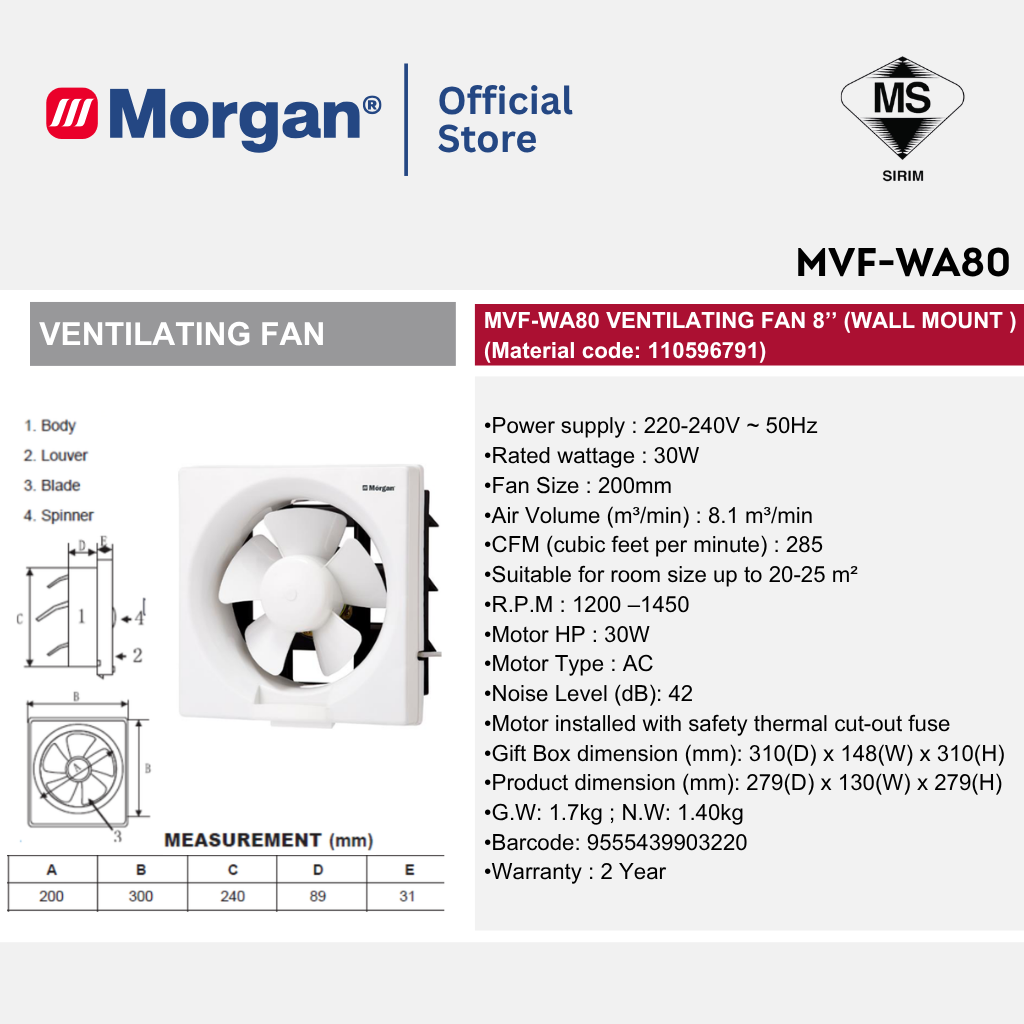

MVF-WA80 Specification

• Power supply : 220-240V ~ 50Hz

• Rated wattage : 30W

• Fan Size : 200mm

• Air Volume (m3/min) : 8.1 m3/min

• CFM (cubic feet per minute) : 285

• Suitable for room size up to 20-25 m2

• R.P.M : 1200 – 1450

• Motor HP : 30W

• Motor Type : AC

• Noise Level (dB): 42

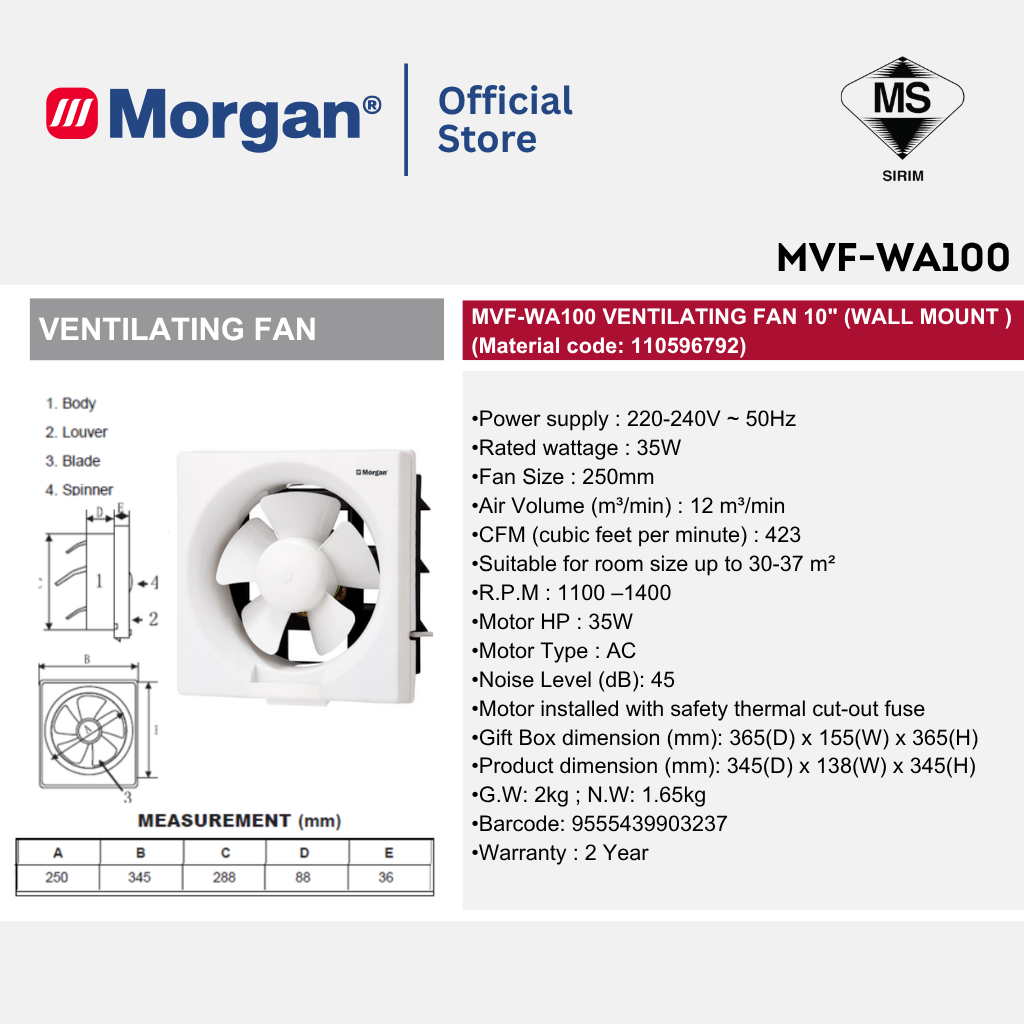

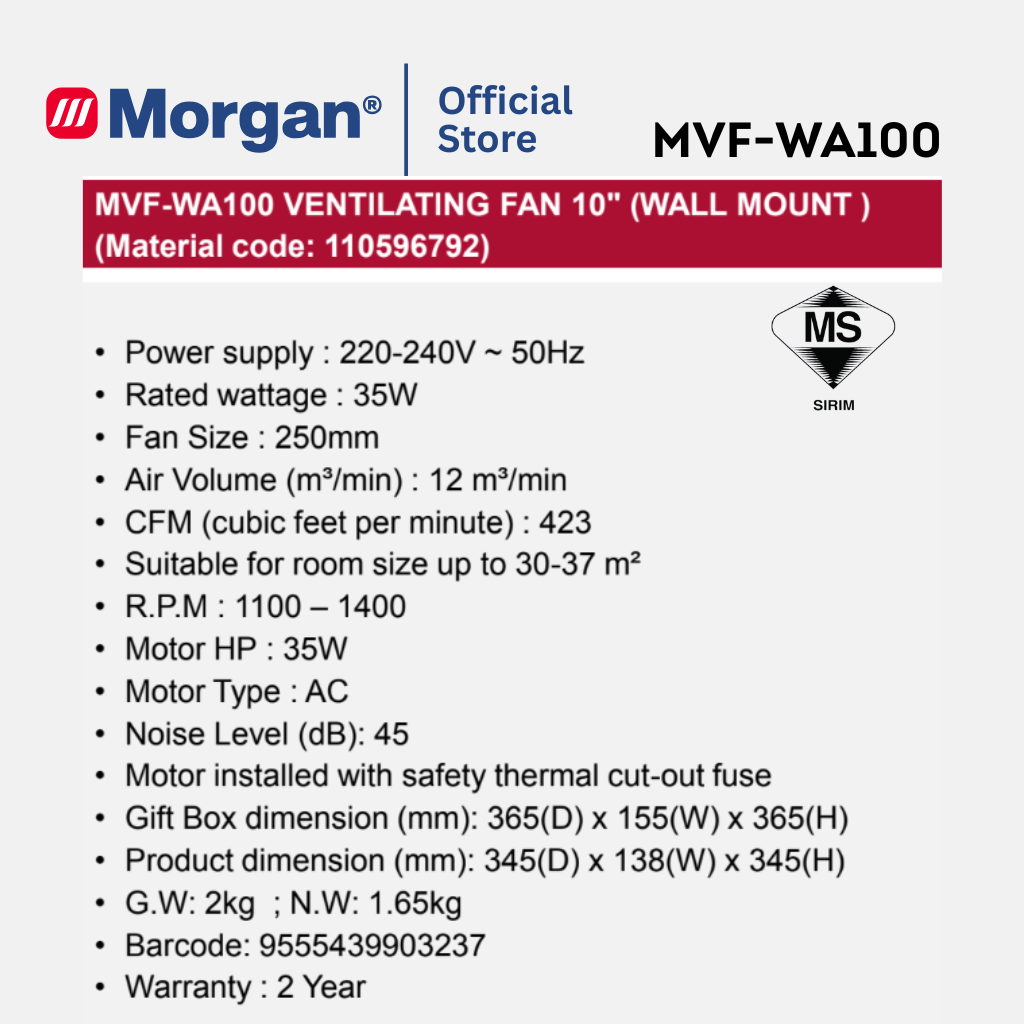

MVF-WA100 Specification

• Power supply : 220-240V ~ 50Hz

• Rated wattage : 35W

• Fan Size : 250mm

• Air Volume (m3/min) : 12 m3/min

• CFM (cubic feet per minute) : 423

• Suitable for room size up to 30-37 m2

• R.P.M : 1100 – 1400

• Motor HP : 35W

• Motor Type : AC

• Noise Level (dB): 45

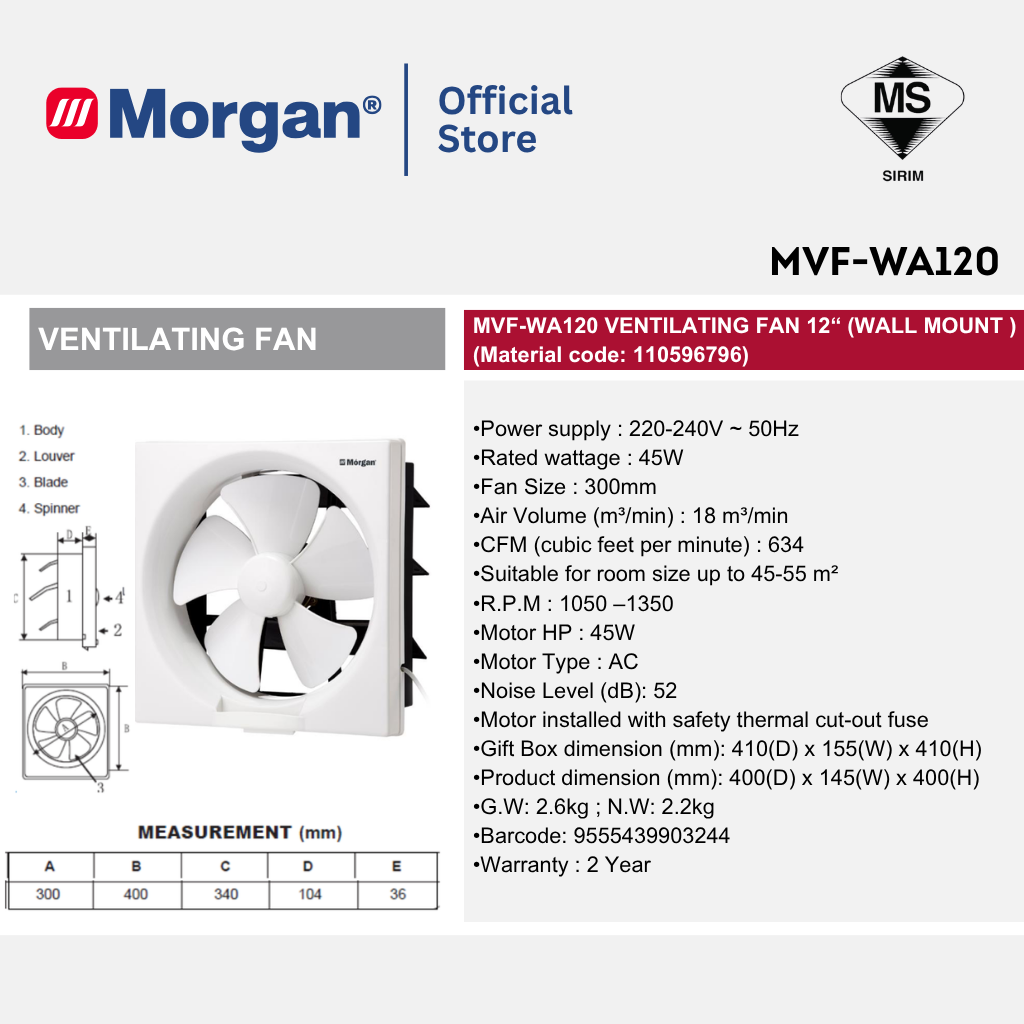

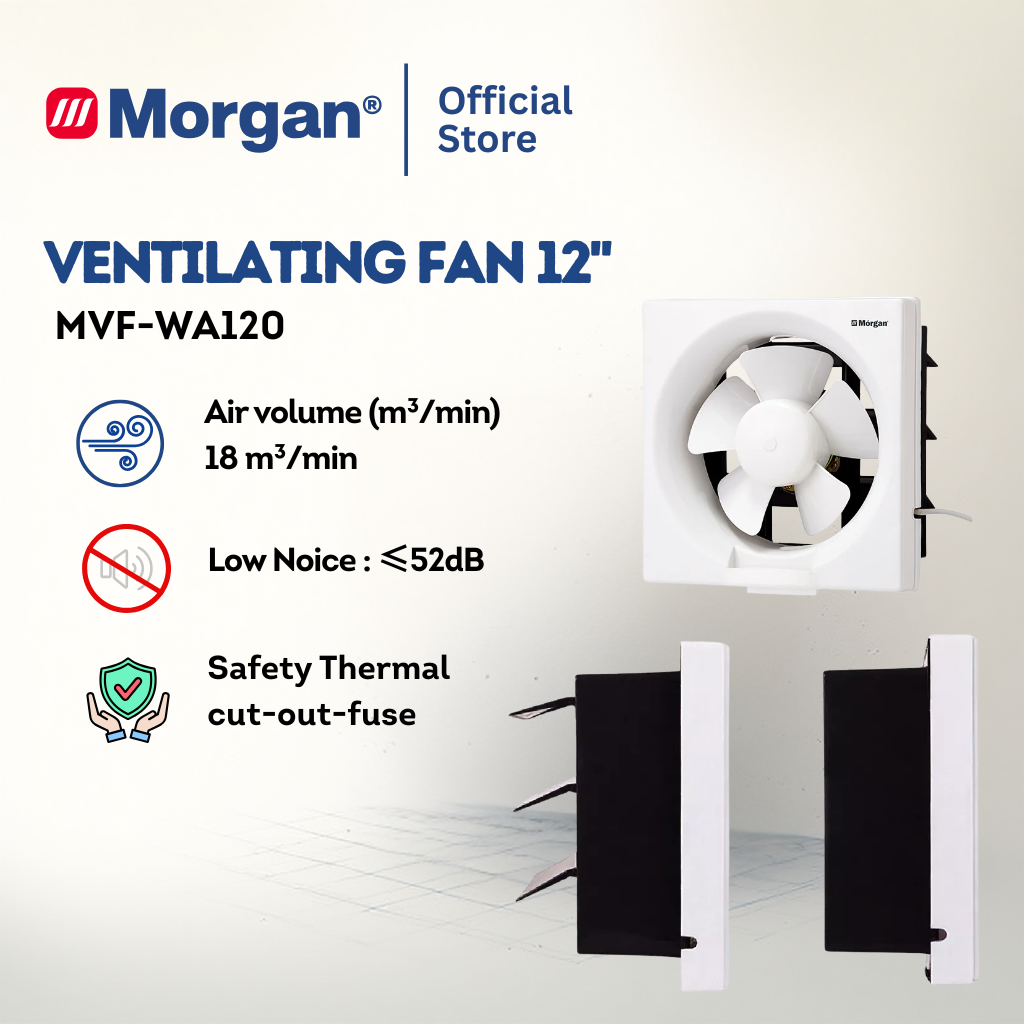

MVF-WA120 Specification

• Power supply : 220-240V ~ 50Hz

• Rated wattage : 45W

• Fan Size : 300mm

• Air Volume (m3/min) : 18 m3/min

• CFM (cubic feet per minute) : 634

• Suitable for room size up to 45-55 m2

• R.P.M : 1050 – 1350

• Motor HP : 45W

• Motor Type : AC

• Noise Level (dB): 52

Packaging Info - MVF-WA80

• Product dimension (mm): 293(L) x 130(W) x 293(H)

• Gift box dimension (mm): 305(L) x 150(W) x 307(H)

• Carton box dimension (mm) : 640(L) x 465(W) x 335(H)

• G.W: 1.7kg ; N.W: 1.40kg

• Barcode: 9555439903220

Packaging Info - MVF-WA100

• Product dimension (mm): 345(D) x 138(W) x 345(H)

• Gift Box dimension (mm): 365(D) x 155(W) x 365(H)

• G.W: 2kg ; N.W: 1.65kg

• Barcode: 9555439903237

Packaging Info - MVF-WA120

• Product dimension (mm): 400(D) x 145(W) x 400(H)

• Gift Box dimension (mm): 410(D) x 155(W) x 410(H)

• G.W: 2.6kg ; N.W: 2.2kg

• Barcode: 9555439903244

Product Warranty ️

• Warranty : 1 Year General Warranty +3 Years Motor Warranty
